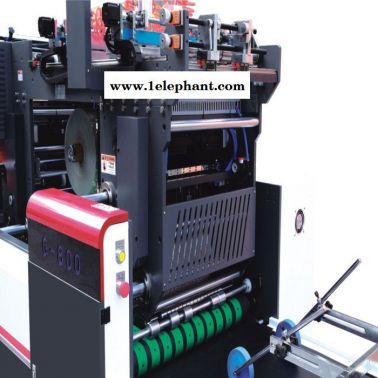

G-1080A全自动高速数控贴窗机
机器介绍；
G-1080A全自动高精度贴窗机为纸张类局部贴膜专用机器，该机为整体钢板结构，横刀裁切薄膜，整机配备6台伺服电机和七台步进电机，全数字化控制，运行中各项参数微调，100组客户订单文件记忆保存，重复产品或补单只需调取数据一键调节，调机速度仅需10分钟，选装在线诊断控制功能，该机可对厚度为0.05-0.25mm的PVC,BOPET,PE,OPP,CPP薄膜（胶片）进行双压线和双切口，自动输送纸张，自动涂胶，自动裁切，自动贴膜，运行速度10000pcs/h，各工位多传感器检测，运行状态实时监控，异常降速警报。
G-1080A Full Automatic High Precision Window Patching Machine has been the special machine for the paper partial film patching. This machine is in integral steel plate structure. It adopts transverse knife for the film cutting. The whole machine is equipped with 6 servo motors and 7 stepping motors with the full-digital control. All parameters can be fine-tuned during operation. Memory storage of 100 sets of customer order files enables it one key to retrieve the order when meets the repeated products or replacement order. The fastest adjustment speed is only 10 minutes. The online diagnostic control function can be an additional option. This machine can realize the double creasing and double cutting on PVC,BOPET,PE,OPP,CPP film with the thickness of 0.05-0.25mm. Automatic paper feeding, gluing, cutting and film patching can all be realized in this machine with the highest running speed of 10000pcs/h. It is also equipped with multi-sensor detection of each station, real-time monitoring of running state and abnormal speed reduction alarm functions.
主要技术参数（Specifications）
参数parameter G-1080A 最大纸张 Max.Paper Size W1080XL800mm 最小纸张 Min.Paper Size 110X110mm 纸张克数Paper Weight 牛皮纸Kraft Paper：150-1200g/㎡ 白卡纸White Cardboard：230-1200g/㎡ 瓦楞纸Corrugated Paper：≤3mm 薄膜最大 Max.Film Size W 400XL430mm 薄膜最小Min.Film Size W30XL65mm 薄膜最大放卷直径 Max. Film Unwinding Diameter 450mm 薄膜厚度Film Thickness CPE/PE:0.1-0.3mm PVC:0.08-0.3mm APET/PET:0.06-0.3mm 贴膜精度Film Precision ±0.5mm 最大速度Maximum Speed 10000pcs/h 伺服电机数量 Quantity of Servo Motor 6台Sets 步进电机数量 Quantity of Stepping Motor 7台 Sets 驱动部位：V型冲压模具X向自动调节2台，Y向自动调节4台，自动收纸1台 Driving Parts： Two V-shaped stamping moulds with X-direction automatic adjustment，4 sets of Y-direction automatic adjustment , Automatic paper receiving 1 set V型冲孔模具数量 Quantity of V-shaped Punching Mould 4套Kits 薄膜压线轮数量 Quantity of Film Creasing Wheels 2套Kits 电 源 Power 380/415V 50/60Hz 13KW 机器尺寸Overall Dimension L670×W182×200cm 整机重量Overall Weight 3200kg
型 号Model
输纸部；
输纸皮带采用日本倪塔品牌，解决了UV印刷纸张输纸不顺畅的问题，底部皮带加真空吸附输纸，伺服电机驱动，可多种输纸模式切换。
Paper Feeding:
The Paper Feeding Belt of the machine adopts the Japanese Brand Nita which well solves the problem of unsmooth UV printing paper feeding. The paper feeding is realized through bottom belt with the vacuum absorption function. Driven by Servo Motor enables it to switch among multiple paper feeding modes.
轨道校正部；
轨道带自锁直线轴承自由滑动取代了传统丝杆传动手摇调节慢的缺点，高分子尼龙材料轨道条 低噪音，耐磨损，校正定位销采用伺服电机单独驱动。
Correction of Paper Feeding Track:
The track with self-locking linear bearing is free to slide. It takes the place of traditional slow
screw-driving hand-shaking regulation. The chains orbits which contain high polymer nylon
material are in high wear resistance and low noise .Correction pin adopts servo motor
separately driving.

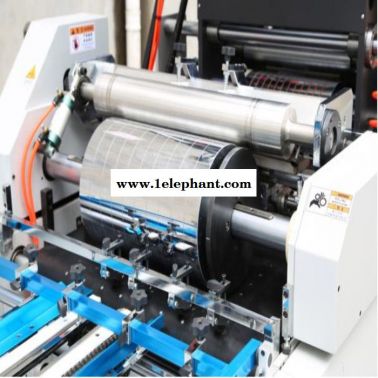

涂胶部；
涂胶滚筒304不锈钢制作，易清洗，耐腐蚀，印胶模型滚筒横向与纵向分别由伺服电机驱动，可不停机直接进行双向调节,涂胶部具备空张抬起功能，避免胶水接触到皮带，减少因为空张而频繁停机清洗皮带的麻烦。
Gluing:
The gluing roller is made from 304 Stainless steel material which is in high corrosion resistance
and is easy to clean. Transverse and longitudinal gluing model roller are driven by servo motor
which can realize the dual-directional regulation directly without stopping. The gluing part is
equipped with the automatic lifting function. It avoids the glue touching the belt which
reduces the trouble of frequently machine stop for cleaning because of the lack for paper
problem.
薄膜冲压部；
薄膜放卷带磁粉张力和自动纠偏校正，压线轮压力气动调节，标配四套冲压模具，冲压位置8轴双向数控自动跟踪，参数写入微调。
Film Punching:
Film unwinding is equipped with various functions such as magnetic powder tension and
automatic correction, pressing line pressure pneumatic control, punching 8 axis
dual-directional numerical control auto tracking, parameter read-in minor adjustment etc. It is
also equipped with 4 sets punching moulds.
贴合部；
横刀裁切由伺服电机驱动，裁切角度准确控制，相比传统气缸驱动，有噪音低，速度快，角度可控的优点。滚筒吸附连续式粘贴相比传统间歇式粘贴具有贴合速度快，对薄膜要求低等优点，贴合滚筒由伺服电机单独驱动，在机器运行的情况下可自由调节薄膜贴合位置。
Film Pasting:
Transverse cutting knife is driven by servo motor with high cutting angle precision control.
Compared with traditional cylinder driving .It has got the advantages of low noise, high speed
with the angle able to control etc. Roller absorption continuous pasting is in higher speed and
requires less towards film compared with traditional intermittent pasting way. The pasting
roller is separately driven by servo motor and can freely adjust the film pasting position when
machine is running.

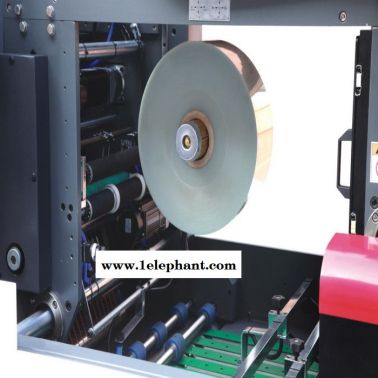

薄膜放卷部；
气胀轴装膜使更换薄膜更快捷，光电纠偏解决了薄膜卷材分切不平整的问题，放卷纠偏精度±0.2mm，电磁张力控制系统让薄膜放料张力恒定在理想的状态使薄膜压痕以及冲孔精度更高。
Film Unwinding:
It adopts air shaft to install the film enables it to faster replace the film. The photoelectric correction well solves the problem of cutting unevenness for the film coiled material. The precision of unwinding correction is ±0.2mm.The Electromagnetic tension control system keeps the film feeding tension in constant at ideal state which makes the film creasing and punching in higher precision.
