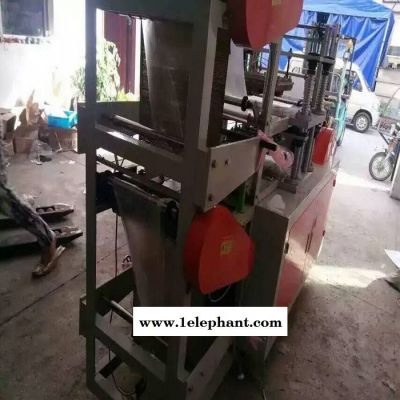

云邦600连卷垃圾袋制袋机 双道无心连卷制袋机 平口连卷袋制袋机图1云邦600连卷垃圾袋制袋机 双道无心连卷制袋机 平口连卷袋制袋机图2

云邦600连卷垃圾袋制袋机 双道无心连卷制袋机 平口连卷袋制袋机

2021-08-14 11:591180
价格 42000.00
发货 浙江温州市预售,付款后10天内
品牌 云邦
规格 600
生产能力 80
库存 42000起订1台
产品详情
规格 600
生产能力 80
适用材料 塑料
售后服务 保修一年
制袋速度 120
生产产品种类 垃圾袋
品牌 云邦
型号 600
制袋规格 600

性能及特点:



电脑控制高速双层连卷袋制袋机,具有光电自动跟踪,微电脑定长,高定位停机,牌坊地数,到数报警精确度高,制作的袋子不足为训,误差小,整机自动代程序高,是生产白袋、色袋、连卷平口袋,等各种塑料软包装的理想设备。



Performance and features:



Computer-controlled high-speed   making machine has a photoelectric automatic tracking microcomputer fixed-length, high-limit stop, automatic counting, automatic alarm when reaching the set value,high compensation accuracy with such characteristics as neat bags, little error and high automatic of whole machine,so it is a kind of ideal equipment for producing blank bags, colour bags, flat bags and .etc and other various plastic soft packing bags.



主要技术参数:



Main technical parameters:



型号

Model

600mm

制袋条数

Cutting line

2pcs

产品宽度

Bag width

100-600mm

产品长度

Bag length

100-1000mm

制袋速度

Cutting speed

50-120个/分钟/条

主电机

Main motor

1.5KW

加热功率

Heating Capacity

3KW

使用电源

Power supply

220V, 50Hz

使用电器

Electronics used

国产知名品牌

机器重量

Machine weight

900kg

机器尺寸

Installed dimension

3.8×1.35×1.8M

可选设备

Optional device

伺服电机,进口光电眼



随机赠送清单/台*1  (spare parts list for one set)



GJHD微电脑控制高速连卷袋制袋机

GJHD Microcomputer Control High-speed Continuous-Rolled Making Machine

序号


名称

数量

备注

01



内六角板手 inner hexagonal wrench

螺丝刀 screw driver

机油枪 oil gun

1pc



各一样

02



电子胶带stick

2boxes



03



烫 布heat cloth

2pcs



04



电热隅

electric-thermal couple

1 pc



05



电压表voltmeter

1pc



06



交流接触器

CJX1-12A/220V A.C contactor

1pcs



07



帘子curtain

2pc



08



硅胶条silicon glue

1pc



09



电热片

electric-thermal slice

2pcs



10



弹簧spring

50pcs
