| 品牌 | ABEL |
|---|---|

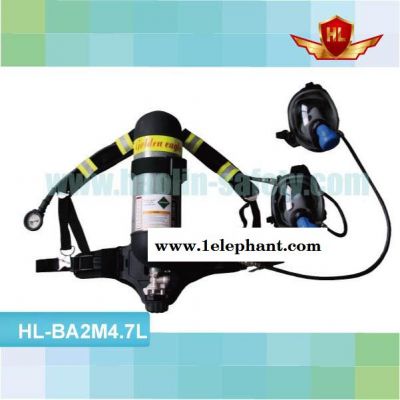

| 型号 | HLBA2M4.7L |
上海亚博安防实业有限公司销售的HL-BA系列正压式空气呼吸器是一种隔绝式呼吸保护装备，为使用者进入缺氧，有毒害气体环境中提供呼吸保护。整套产品配有视野广阔、明亮、气密良好的全面罩，体积小、重量轻的供气装置，高强度背板和安全系数高的优质高压气瓶，减压阀装置装有残气报警器，可向使用者发出声响报警信号，提醒使用人员及时撤离现场。
主要适用于消防、军警、公安、化工、电力、船舶、石油、冶炼、厂矿、薰仓、粮食熏蒸等处，使消防员或抢险救护人员能够在充满浓烟、毒气、蒸汽或缺氧的恶劣环境下安全地进行灭火、抢险救灾和救护工作。
新款的正压式空气呼吸器的全面罩配有通讯系统，具有声音放大功能，也可与不同型号的对讲机连接使用，彻底解决使用人员现场相互交流困难，配合三通接口，组合成多面罩、多供气阀，可以同时供三人使用。气瓶可以选择3升、4.7升、6.8升、9升、12升碳纤维复合气瓶及6升钢瓶（船用）配置。
These series HL-BA (RHZK) SCBA products can be widely used in fire fighting, diving , petroleum, chemical, metallurgy, electric power, shipbuilding, military, police and other industries. It's an breathing apparatus for people who work in the environments with oxygen deficiency, toxic gas, thick smokes, etc. While use, the pressure within the respirator mask is always slightly higher than the external pressure, which can effectively prevent toxic or harmful gases penetrated the mask.
The new type full face mask of comprehensive positive pressure air respirator is equipped with a communication system which has the sound amplification function. This facility makes it easier and quicker to solve personnel on-site communication difficulties. Also the use of group selectors, where two or more masks are grouped together, SCBA Can be used for three people at the same time.Cylinders can choose 3 liters and 4.7 liters and 6.8 liters, 9liters, 12litres carbon fiber composite cylinder and 6litres of the cylinder (Marine) configuration.
I. 全面罩
1.硅橡胶材质面罩具有面部识别清楚、口鼻罩小、柔软、舒适、抗老化，无毒、无味，对敏感性肌肤的使用者无刺激的特点。
2.聚碳酸酯大视野面屏具有很好的防刮擦性，透光性好，视野清晰，双重防雾功能，长时间使用不上雾。
3.头罩为网状式结构,阻燃织物制成，透气性好，佩戴舒适和方便。
4.可选配带有通讯功能的面罩，通过声音放大功能或是连接对讲机，确保在嘈杂的环境下无须卸下面罩，仍能保持沟通。
I. Full Face Mask
1. Silicone Mask with facial recognition clearly,soft, non-toxic, tasteless.
2. PC Anti-fog visor, visual field up to 98%, good transparency, clear vision.
3. Nose cup equipped inner for effectively reducing the dead space.
4. Option with radio communication function to ensure keep communication without removing the mask in a noisy environment.
II. 供气阀
1.供气阀设有应急供气按钮、节气开关和吸气自动开启结构，使用方便、供气可靠、节约气体，延长使用时间。
2.供气量大于500L/min。
3.供气阀与面罩为快速插口式连接，360度快速插接，灵活方便。
II. Demand Valve
1.valve has a emergency gas supply button, throttle-switch and automatic suction structure to extend the use of time.
2. Air flow not less than 500L/min.
3. Full angle insert, fast and flexible.
III. 减压阀
1.气瓶减压阀的输出压力始终处于0.6到0.9Mpa之间。其输出流量大于1000L/min，充分保证使用人员的呼吸量。
2.减压阀设置安全阀装置，当减压器输出压力超过设定安全压力时，中压安全阀会自动泄压保护系统。一级减压阀输出端配有他救接口。
3.减压阀和供气阀的连接处装有限流孔，一旦压力表或高压管损坏，高压空气的损失流量不会超过25L/min。
4.减压阀配置两根独立的中压管（其中他救管为1.5米长），可分别连接两个供气阀及面罩，供作业者和他救人员单独或同时使用。
III. Regulator
1. Output pressure from 90psi to 135 psi (6bar to 9bar), Air flow≥1000L/min.
2. Safety valve automatically operate while the valve fails. Safety valve can keep the output pressure from 148psi to 225psi (9.9bar to 15bar).
3. There is a limited flow hole in valve connections, once the pressure gauge or pipe damage, the loss air flow no more than 25L/min.
4.Pressor regulator equipped two separate pressure pipe, connect two supply valve and masks for rescue operations individually or simultaneously
IV. 碳纤维气瓶及瓶阀
1.气瓶符合DOT、CE标准。
2.气瓶带荧光标识，标识带均嵌入在玻璃纤维缠绕层内，色彩醒目，易于在昏暗条件下辨识，清晰易于辨别，提高作业人员的安全性。
3.采用全缠绕碳纤维复合材料，气瓶内胆采用高强度、耐腐蚀、重量轻的铝合金材料；外部用数层碳纤维、玻璃纤维缠绕；气瓶表层为环氧树脂。
4.瓶阀带有高压安全装置，是防误关手轮。手轮开启力矩小，是六圆弧状柱体，在旋转手轮时手抓感良好。瓶阀体上设安全螺栓，当气瓶内压力过高时，安全膜片将自动爆破卸压以确保意外情况下瓶的安全。瓶阀上带有符合欧标的防误关手轮。
5.可选配带压力表的瓶阀，直接观测瓶内气体情况。
IV. Carbon Fiber Cylinder & Cylinder Valve
1. Meet standard DOT ,CE
2. Fluorescence signs to improve workers safety.
3.Cylinder fitted with valve as per is specification.
4.Hight ensile carbon fiber cylinders, seamless for storing compressed Air. The valve is the one anti-error hand wheel, which the European standard. The Valve with pressure gauge on it is also available.
5.Cylinder valve with a pressure gauge is available
V. 背架总成
1.背架外层纺织材料采用阻燃织物材料，抗击静电和耐腐蚀。背板按照人体工程学原理设计，采用纤维增强塑料材料，强度高，韧性好。舒适的腰垫，使腰肩部无压迫感。整体轻巧设计让使用者可以轻松的用单手操作整个装备。背板可携配不同规格的气瓶。
2.背带由阻燃织物制成、双侧可调，能使重量落于腰胯部位，减轻肩带对胸部的压迫，使呼吸顺畅。在肩带上设有宽大弹性衬垫，减轻对肩的压迫，肩垫宽厚柔软，调节方便。腰带和肩带均为耐磨、防滑、防火、防化材料，且肩带上设有反光带。
3.调节气瓶固定带，将不同规格的气瓶牢固地固定在背板上，以避免气瓶晃动。
4.中高压管路从背架中间穿过，避免使用人员因作业时勾挂管路而产生漏气危险。
V. BACK PLATE & Harness
1.Brace use outer fabric retardant material of textile materials against static electricity and corrosion. Back plate designed per ergonomic, lightweight and flexible. It's easily operate with one hand.
2. Harness connect shoulder strap and belt , can fix the height of the SCBA.
3. Adjusting the belt can distributed pressure on the shoulders.
4. Adjusting cylinder strap will firmly fixed on the cylinder on the back.
VI. 报警哨及压力表
1.压力表的连接为活动式（360度旋转），指示气瓶中的气压。压力表为防水、抗震，并有橡胶防护套保护
2.表盘荧光显示，可以在暗处和夜晚等灯光昏暗的情况下读取压力表数值。其量程为0-40Mps。
当气瓶内的空气余量下降到5.5±0.5Mpa时,内置式报警哨工作，自动发出持续报警声音，报警声音≧90分贝，不会随气压降低而减弱，提醒使用者把握撤离时间，确保使用安全。
VI. Alarm whistle and the gauge
1.Fluorescence pressure gauge indicate the air pressure although in dark.
a rubber shock ring can avoid shock and waterproof impact on the pressure gauge.
2.Dial fluorescent display with range 0-40Mpa. Can read gauges values in the dark and dimly lit situations.
Alarm will be ring while the pressure at 825±75psi (55±5bar), Alarm sounds ≧ 90db. Not weakened with reduced pressure, It remind the user to grasp the evacuation time to retreat.
技术参数
Technical Parameters
型号 Serials No. | 气瓶 工作 压力 (MPa) Operating Pressure | 气瓶 容积 (L) Volume | 最大 供气 流量 (L/min) Maximum flow | 呼吸阻力(Pa) Breathing resistance | 报警 压力 (MPa) Alarm Pressure | 报警 声音 Alarm Sounds
| 使用 时间 (min) Using time | 整机 重量 (kg) Weight | 包装 尺寸(cm) Packing Size | |
呼气exhalation resistance | 吸气 Inhale resistance | |||||||||
HL-BA1M2L | 30 | 2 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 20 | ≤6 | 74×47×30 |
HL-BA1M3L | 30 | 3 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 20 | ≤6.2 | 74×47×30 |
HL-BA1M4.7L | 30 | 4.7 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 47 | ≤7.1 | 74×47×30 |
HL-BA1M6L | 30 | 6 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 60 | ≤13.1 | 74×47×30 |
HL-BA1M6.8L | 30 | 6.8 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 60 | ≤9.5 | 74×47×30 |

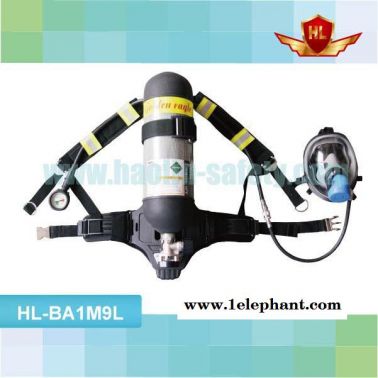

HL-BA1M9L | 30 | 9 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 90 | ≤11.5 | 74×47×30 |
HL-BA1M12L | 30 | 12 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 120 | ≤13.5 | 74×47×30 |
HL-BA1M4.7L*2 | 30 | 4.7×2 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 94 | ≤12.5 | 74×47×30 |
HL-BA1M6.8L*2 | 30 | 6.8×2 | 1000 | <1000 | <500 | 5.5±0.5 | ≧90db | 120 | ≤17 | 74×47×30 |
