| 产地 | 浙江 |
|---|---|
| 功率 | 9 |
| 速度 | 5000-10000pcs/h |
| 外形尺寸 | 6200mm*1520mm*2000mm |
| 品牌 | 创达 |
| 型号 | G-800A |
| 加工定制 | 是 |
| 质量认证 | CE |
| 包装对线 | 包装盒 |

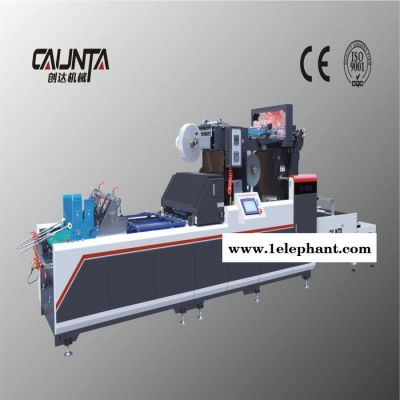

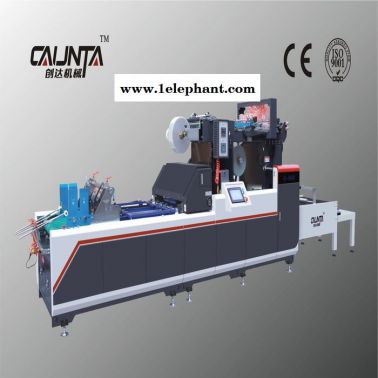

G-800A全自动高速数控贴窗机
G-800A/ Automatic High Precision Window Patching Machine
机器介绍；
G-800A全自动高精度贴窗机为纸张类局部贴膜专用机器，该机为整体钢板结构，横刀裁切薄膜，整机配备6台伺服电机和七台步进电机，全数字化控制，运行中各项参数微调，100组客户订单文件记忆保存，重复产品或补单只需调取数据一键调节，调机速度仅需10分钟，选装在线诊断控制功能，该机可对厚度为0.05-0.25mm的PVC,BOPET,PE,OPP,CPP薄膜（胶片）进行双压线和双切口，自动输送纸张，自动涂胶，自动裁切，自动贴膜，运行速度10000pcs/h，各工位多传感器检测，运行状态实时监控，异常降速警报。
G-800A Full Automatic High Precision Window Patching Machine has been the special machine for the paper partial film patching. This machine is in integral steel plate structure. It adopts transverse knife for the film cutting. The whole machine is equipped with seven servo motors and ten stepping motors with the full-digital control. All parameters can be fine-tuned during operation. Memory storage of 100 sets of customer order files enables it one key to retrieve the order when meets the repeated products or replacement order. The fastest adjustment speed is only 10 minutes. The online diagnostic control function can be an additional option. This machine can realize the double creasing and double cutting on PVC,BOPET,PE,OPP,CPP film with the thickness of 0.05-0.25mm. Automatic paper feeding, gluing, cutting and film patching can all be realized in this machine with the highest running speed of 10000pcs/h. It is also equipped with multi-sensor detection of each station, real-time monitoring of running state and abnormal speed reduction alarm functions.
主要技术参数（Specifications）
|
参数parameter | G-800A |
| 最大纸张 Max.Paper Size | W800XL550mm
|
| 最小纸张 Min.Paper Size | 110X110mm |
| 纸张克数Paper Weight | 牛皮纸Kraft Paper：150-1200g/㎡ 白卡纸White Cardboard：230-1200g/㎡ 瓦楞纸Corrugated Paper：≤3mm |
| 薄膜最大 Max.Film Size | 300X300mm
|
| 薄膜最小Min.Film Size | W30XL65mm |

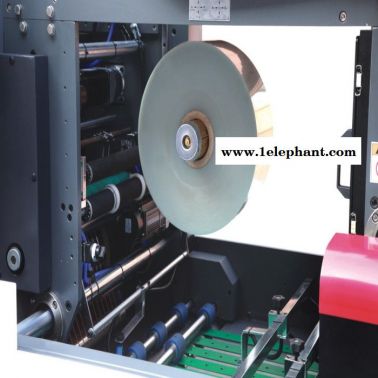

| 薄膜最大放卷直径 Max. Film Unwinding Diameter | 450mm
|
| 薄膜厚度Film Thickness | CPE/PE:0.1-0.3mm PVC:0.08-0.3mm APET/PET:0.06-0.3mm |
| 贴膜精度Film Precision | ±0.5mm |
| 最大速度Maximum Speed | 10000pcs/h |
| 伺服电机数量 Quantity of Servo Motor | 6台Sets
|
| 步进电机数量 Quantity of Stepping Motor | 7台 Sets 驱动部位：V型冲压模具X向自动调节2台，Y向自动调节4台，自动收纸1台 Driving Parts： Two V-shaped stamping moulds with X-direction automatic adjustment，4 sets of Y-direction automatic adjustment , Automatic paper receiving 1 set |
| V型冲孔模具数量 Quantity of V-shaped Punching Mould | 4套Kits |
| 薄膜压线轮数量 Quantity of Film Creasing Wheels | 2套Kits |
| 电 源 Power | 380/415V 50/60Hz 9KW
|
| 机器尺寸Overall Dimension | L620×W152×200cm |
| 整机重量Overall Weight | 2500kg
|
| |
